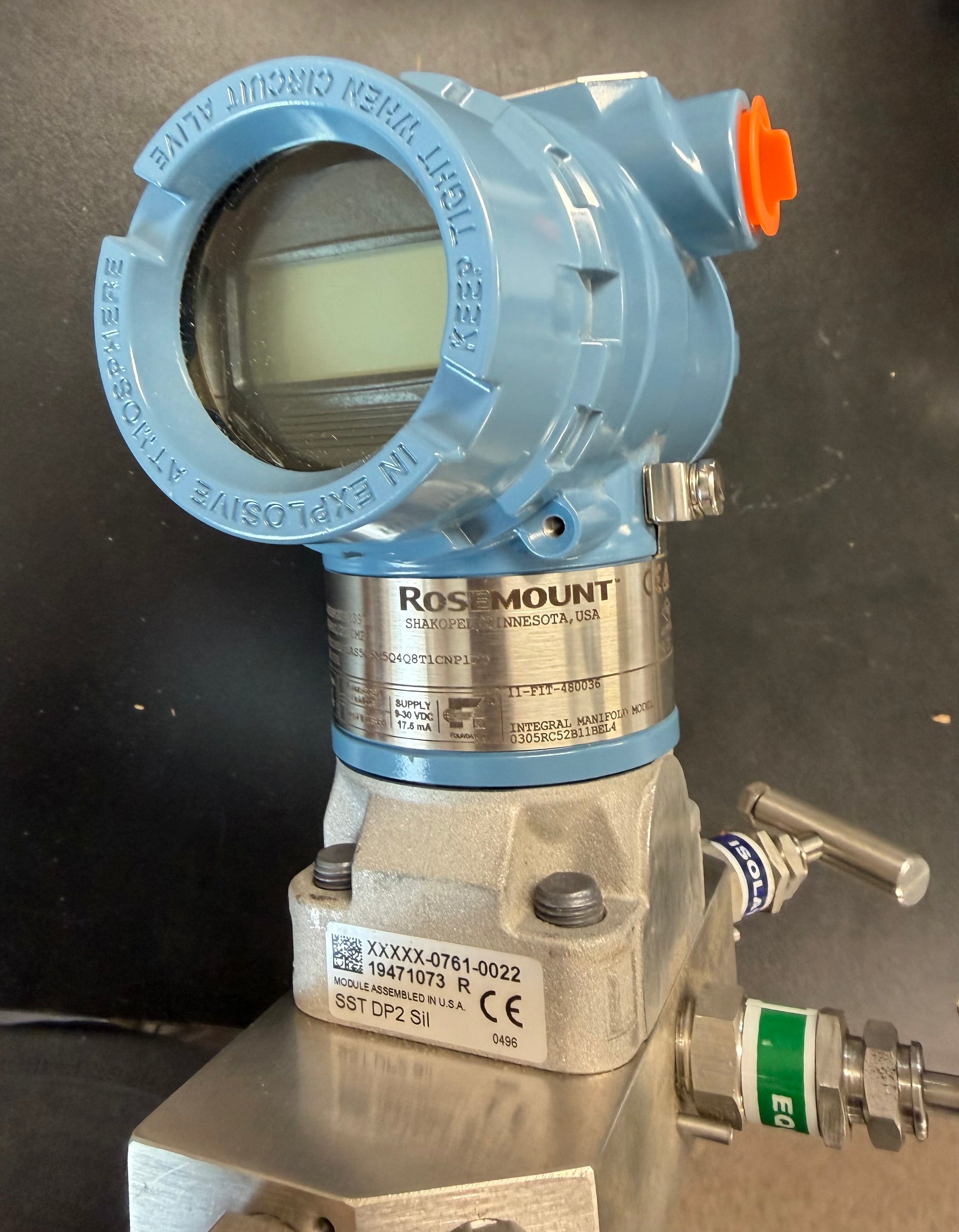

ROSEMOUNT Pressure Transmitter 3051

ROSEMOUNT Pressure Transmitter 3051

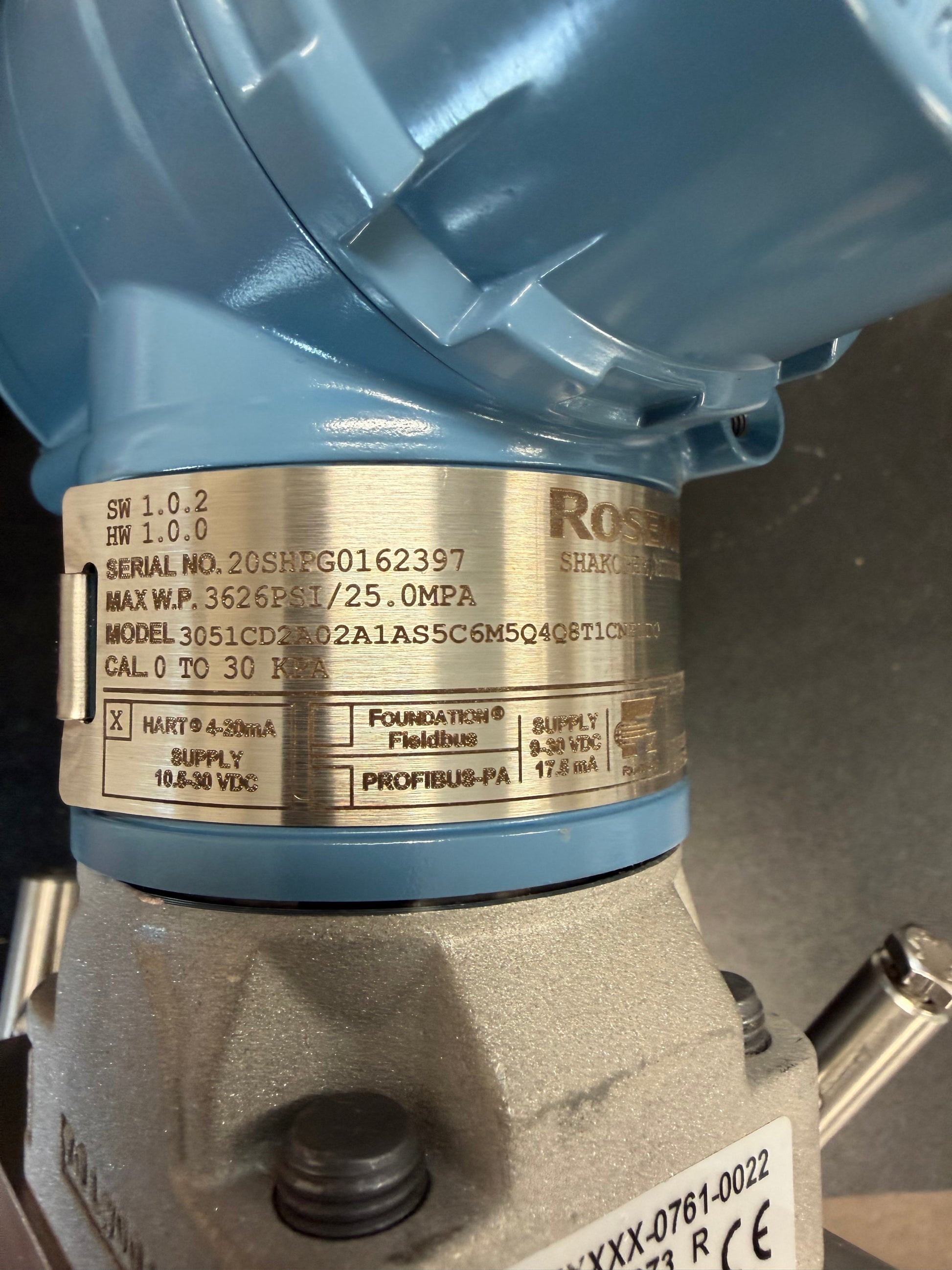

Full Part Number
3051CD2A02A1AS5C6M5Q4Q8T1CNP1DO

Model Code
3051CD2A02A1A

3051C = Coplanar pressure transmitter
D = Differential Measurement Type
0 = Pressure Range –250 to +250 inH2O
(–621.60 to +621.60 mbar)
A = Transmitter output 4–20 mA with digital signal based on HART Protocol
0 =Materials of construction = Alternate process connection
2 = Isolating diaphragm 316L SST
A = O-ring Glass-filled PTFE
1 = Sensor fill fluid Silicone
A = Housing material Aluminum ½–14 NPT

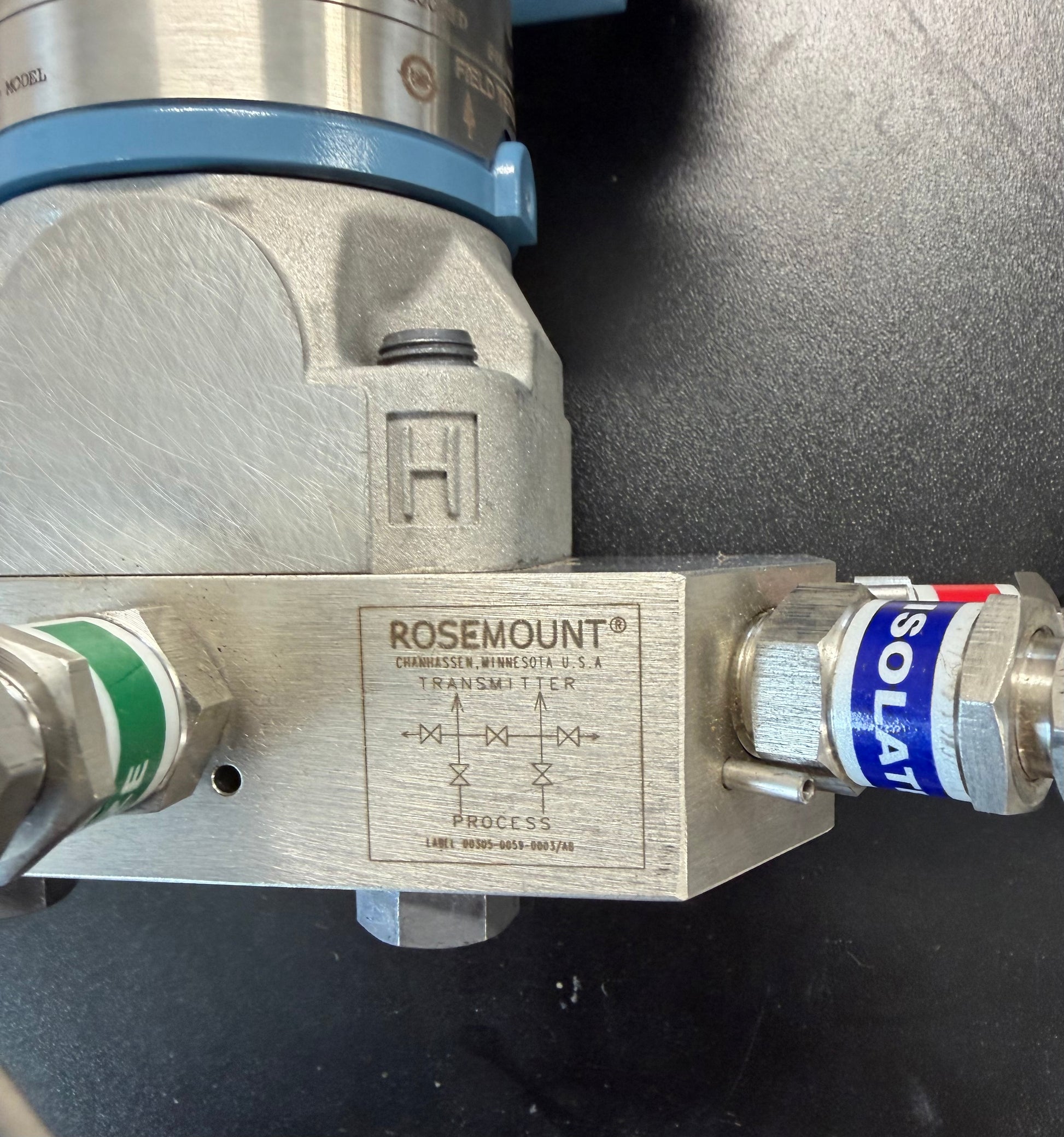

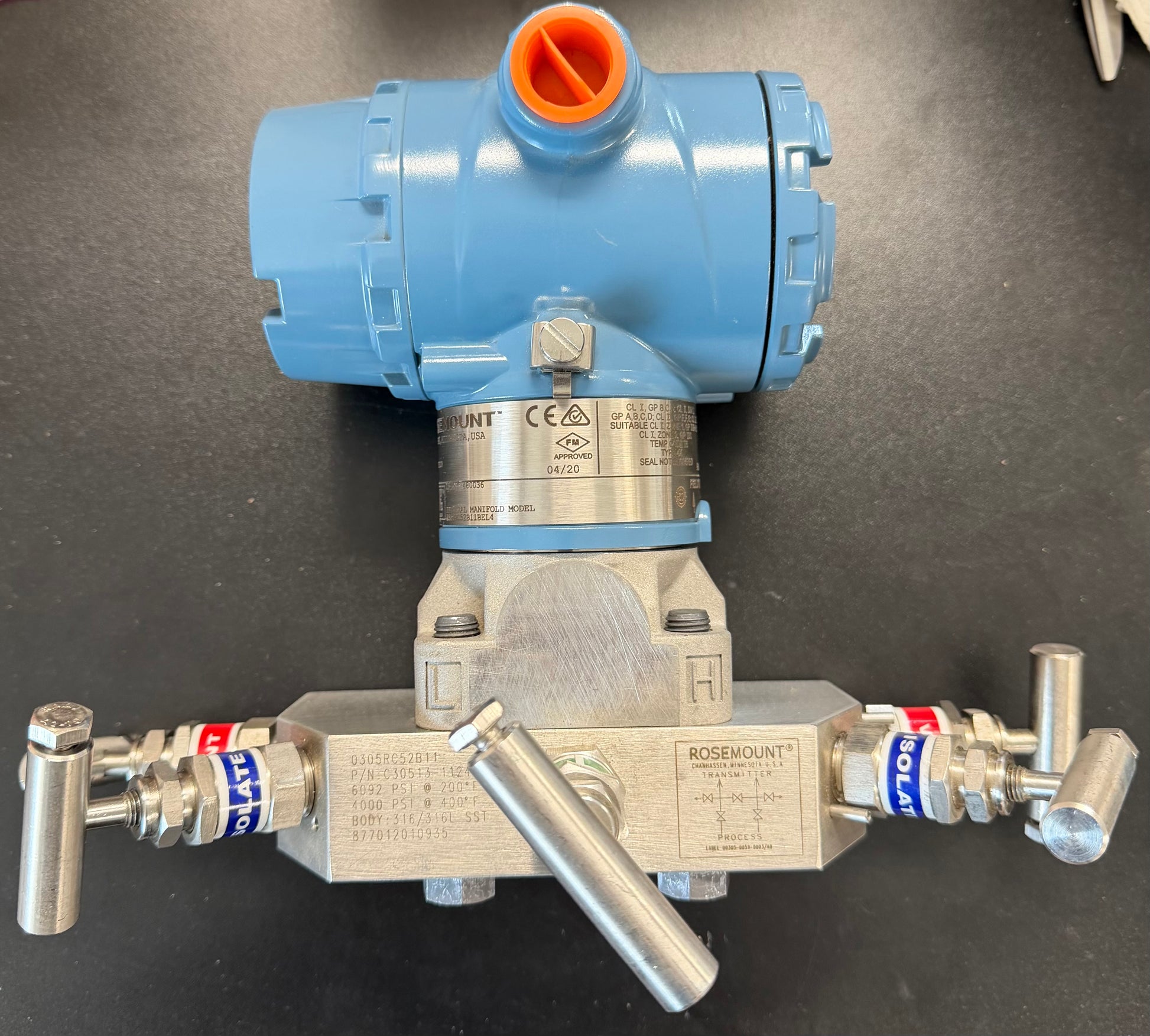

S5 = Manifold assembly Assemble to Rosemount 305 Integral Manifold
C6 = Product certifications - Canada Explosion-proof, Dust Ignition-proof, Intrinsically Safe, and Division 2
M5 = LCD display

Q4 = Calibration certificate
Q8 = Material traceability certification per EN 10204 3.1
T1 = Transient protection terminal block
CN = Analog output levels compliant with NAMUR recommendation NE 43, alarm low
P1 = Hydrostatic testing with certificate
DO = 316 SST conduit plug

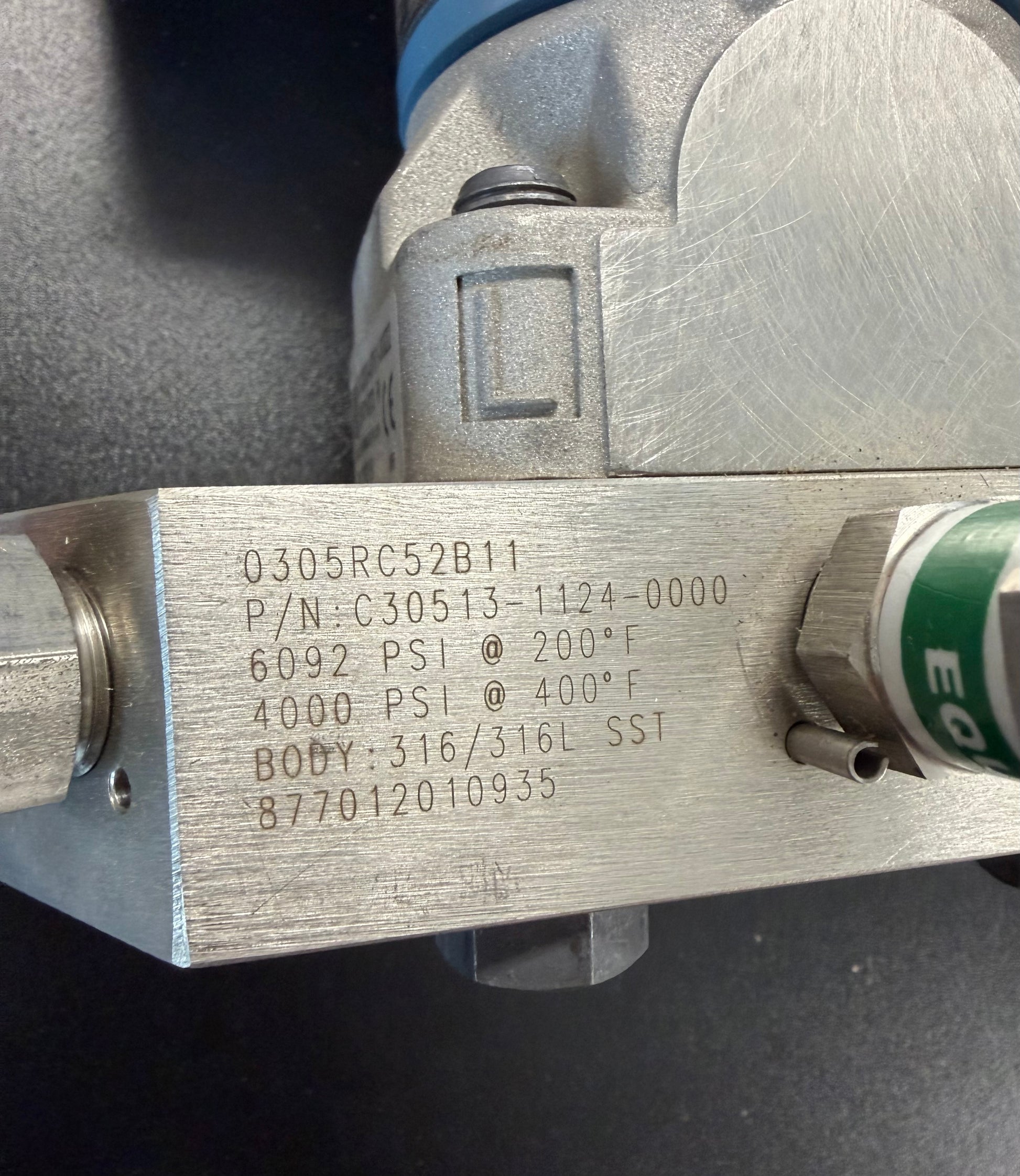

Manifold P/N
C30513-1124-000
